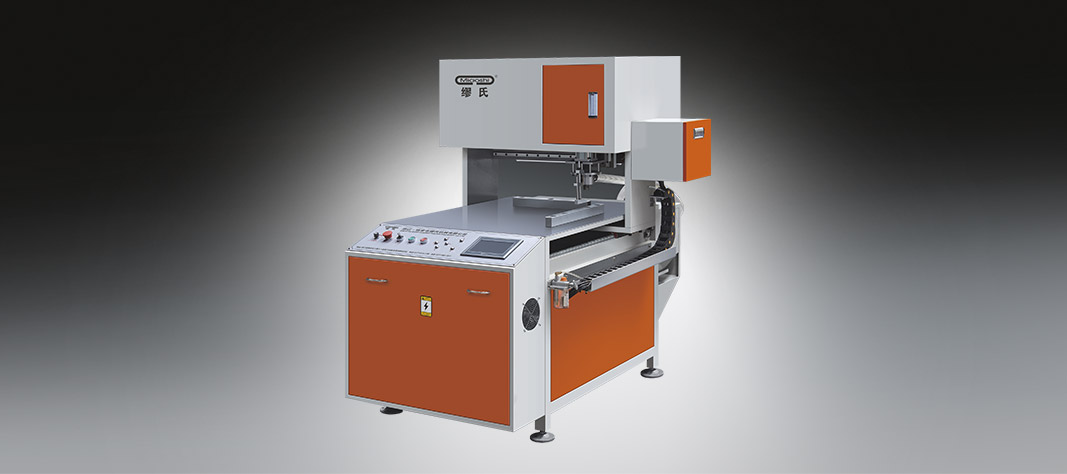

MSZK-570

series drilling machine

Product Introduction

After India MSZK-570 prints high quality drilling machine for the type of need for drilling pre-drilled before cutting pressure, fully replace

inefficient manually drilling, greatly reduce labor intensity users. Reduce labor costs, greatly improve production efficiency, especially

suitable for mass production logo of the printing business.

Technical Characteristics

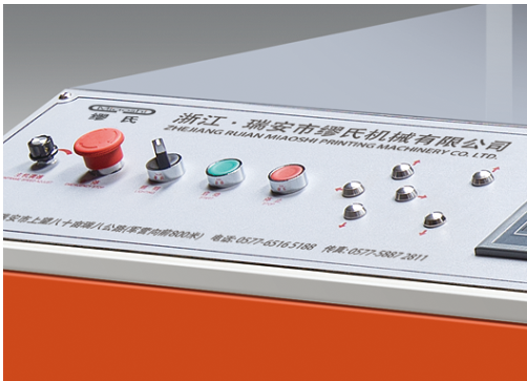

1. The electricat control system consists of HMI and PLC programmable controller, to ensure high reliability and stability of the machine circuits.

2. HMI touuch screen provides a friendly and convenient interactive way, all production data can be generic touch screen settings, save and other operations, education level less demanding on the operator, the average worker will be able to complete alf operations of the machine.

3. Position the actuator by a three-axis precision servo motor and imported linear guide and ball screw composition, positioning speed,high positioning accuracy, positioning resolution of 0.01mm.

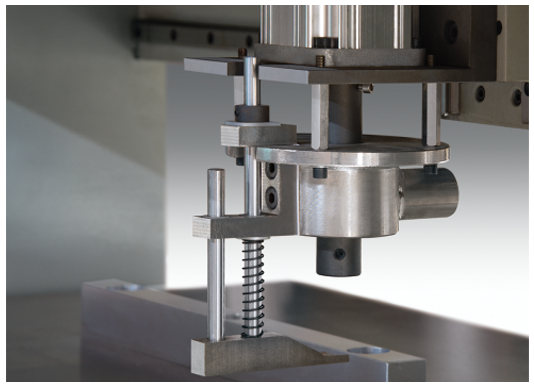

4. The drilling spindle motor with Mitsubishi frequency conversion motor, high speed, low noise, enabling stepless adjustment.

5. Dfilling production generated by high-power suction fan confetti automatic recovery of scraps of paper recycling bin stoensure that the work environment clean pollution-free.

Detail Introduction

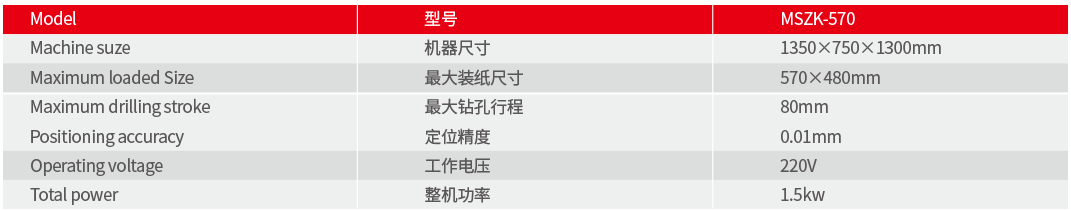

Technical Data
